Popis k tovaru
Náhrada za:
P50K06 50A gR
P51K06 50A gR
P50N06 50A gR

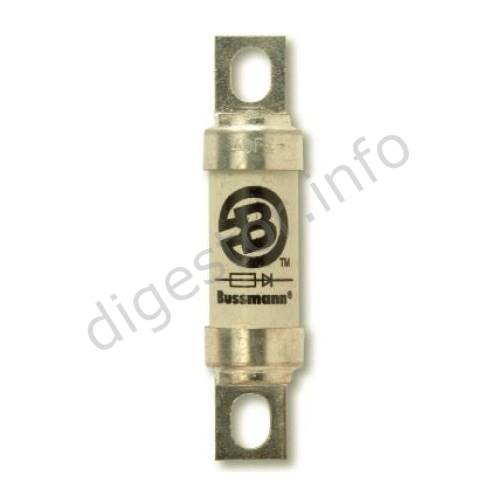

High Speed Fuse Links and Fuse Holders
BS88 Fuse Links
CT, ET, FE, EET, FEE, FM, FMM, MT, MMT
690Vac - 500Vdc, 6 - 710A
Specifications
Description: BS 88 style fuse links for the protection of DC common
bus, DC drives, power converters/rectifiers and reduced voltage
starters.
Ratings:
Volts:— 690Vac (IEC)/500Vdc
— 500Vdc (UL) (350Vdc MT & MMT Series)
Amps:— 6-710A
IR:— 200kA RMS Sym.
— 50kA dc at 500V
Operating Class: aR
Agency Information: CE, Designed and tested to: BS 88 Part 4, IEC
60269 Part 4, UL Recognized. MT and MMT — 350Vdc (IEC) rating.
Consult Cooper Bussmann for UL Recognition status and for DC
voltage ratings.
Inštaláciu a zapojenie môže vykonávať len kvalifikovaný elektrotechnik.
Installation and connection can be performed only by a qualified electrician.
